Phone Line Simulator

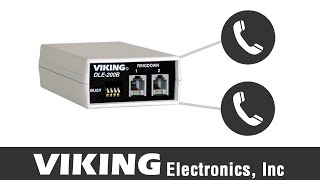

Model: DLE-200B

  • Compatible with fax machines and modem speeds up to 28.8 kbps
  • Precise dial tone
  • Switch selectable ring cadence
  • Provides CPC breaks after hang-up on either port
  • Switch selectable audio attenuation
  • Can provide 2 seconds of precise dial tone before ringdown
  • Provides ringback signal to calling device
  • One or two-way ringdown capability
  • Switch selectable ring count
  • Ringdown and dial tone off mode (ideal for prison phone communications, etc.)
  • 32VDC talk battery
View all features
Add to Pick List Added to Pick List
Software & Downloads

Product Manual

Questions?

We are here to help!

Viking Electronics

Product Details

The DLE-200B Line Simulator allows two-way communication between standard telecom products such as modems, fax machines, key systems, PABX’s and standard single line telephones. The DLE-200B can also provide sales people with a cost effective and easy to use method of conducting on site demonstrations, eliminating the need to locate phone lines and disrupt the customer’s phone service.

The DLE-200B Line Simulator provides precise dial tone, DC talk battery and standard or distinctive ringing. The unit also provides a CPC break on hang up.

Viking Electronics

Applications

  • Dedicated point-to-point communications (ringdown circuits)
  • Program telecom products without a phone line
  • Connecting dictation equipment to electronic key systems
  • Intersystem TIE line
  • Courtesy phones
  • Demonstrating telecom equipment at tradeshows, meetings, etc.
  • Connecting modems together
  • Prison phone communications
  • Programming PC based voice products

Features

  • Compatible with fax machines and modem speeds up to 28.8 kbps
  • Precise dial tone
  • Switch selectable ring cadence
  • Provides CPC breaks after hang-up on either port
  • Switch selectable audio attenuation
  • Can provide 2 seconds of precise dial tone before ringdown
  • Provides ringback signal to calling device
  • One or two-way ringdown capability
  • Switch selectable ring count
  • Ringdown and dial tone off mode (ideal for prison phone communications, etc.)
  • 32VDC talk battery

Certifications

  • FCC Part 15

Specifications

Power 120VAC / 13.8VAC 1.25A UL listed adapter provided
Power Supply Current Draw 600mA maximum
Dimensions 4.75″ x 2.75″ x 1.38″ (120mm x 70mm x 35mm)
Shipping Weight 1.59 lbs (0.72 kg)
Operating Temperature 32°F to 90°F (0°C to 32°C )
Humidity 5% to 95% non-condensing
Ringer Output 2.0 REN
Talk Battery 32VDC
Dial Tone Level -20dBm across 600 Ohms
Maximum Loop Length 2.6 mi (4.2 km), 24AWG twisted pair
Maximum Data Speed 28,800 bps
CPC Break Time 2s or 150ms (selectable)
Connections (2) RJ11 jacks
