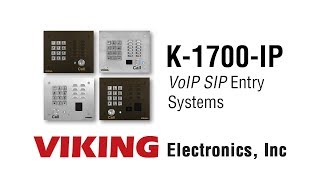

VoIP Entry Phone System with Enhanced Weather Protection, Bronze Finish

Model: K-1700-BN-IPEWP

  • Vandal Resistant Features:
    • 14 gauge louvered 316 stainless steel faceplate with scratch resistant powder coating
    • Stainless steel “Call” button
    • Heavy duty metal keypad
    • T-10 Torx security mounting screws
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self-draining mic mount
    • Faceplate, mic and speaker gaskets
  • Two sets of SPDT 2 Amp relay contacts for door / gate or camera control
  • Secure Remote Relay Control using Viking RC-4A
  • Blue “Call / Status” LED indicator
  • SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
  • PoE powered (class 2, <6.5 Watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • VoIP audio detection eliminates the need for “Push to Talk” mode
  • 26 Bit Wiegand input for adding a Viking proximity card reader
  • 26 Bit Wiegand output can connect to card reader input of an Access Control System
  • Programmable to speed dial up to 250 numbers
  • Cycles to roll over phone number on busy or ring-no-answer
  • Program up to 1,000 keyless entry codes
  • Program up to 1,000 proximity card numbers
  • Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
  • Call logging with time and date stamp
  • Hangs up on busy signal, time-out or touch tone command
  • Extended temperature range (-40°F to 140°F)
  • Volume adjustments for microphone and speaker
  • Selectable auto-answer feature for monitoring
  • Remotely programmable
  • Network downloadable firmware
  • Self diagnostics for testing com, mic, speaker, and switch
  • Zinc plated steel rough-in box with (2) 0.75″ conduit knockouts included
  • Flush mount using the included rough-in box or surface mount using a Viking VE-6×7 Surface Mount Box
View all features

Questions?

We are here to help!

Product Details

The K-1700-BN-IPEWP door entry system provides a tough and attractive handsfree phone for apartment and residential door entry, or applications requiring a vandal resistant VoIP speaker phone. The K-1700-BN-IPEWP is designed to provide quick and reliable handsfree VoIP communication for SIP VoIP phone systems with PoE. The K-1700-BN-IPEWP can be programmed from any PC on the same LAN or remotely using a Static IP Address. The K-1700-BN-IPEWP can dial up to 250 programmable numbers and another 250 rollover numbers.

When a call initiated by the K-1700-BN-IPEWP is answered by an apartment or business tenant, a built-in contact closure may be activated to control an electric gate or doorstrike. Up to 1,000 keyless entry codes may also be programmed, providing tenants with keyless entry. A 26 bit Wiegand input is provided for adding a Viking proximity card reader with capacity to program up to 1,000 card numbers. Keyless door entry codes and card numbers can be programmed to only allow access at specific times and / or day of the week. A request for exit (REX) input is included for easy exiting. The K-1700-BN-IPEWP also has automatic call logging allowing you to review the time and date of the call, which door was open / closed, what keyless entry code or proximity card was used, request for exit usage and whether it was an inbound or outbound call.

The K-1700-BN-IPEWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more information on EWP, see DOD 859.

bronze voip door entry phone with bronze finish and keypad

Applications

  • Apartment Entry Phone
  • Residential Gate Entrance
  • Door Entry Phone
  • Courtesy Assistance Phone
  • Customer Service Phone
  • Automated Teller (ATM) Phone
  • Security or Emergency Phone
  • Hot-Line Phone
  • Kiosk Phone with up to 250 number speed dialing

Features

  • Vandal Resistant Features:
    • 14 gauge louvered 316 stainless steel faceplate with scratch resistant powder coating
    • Stainless steel “Call” button
    • Heavy duty metal keypad
    • T-10 Torx security mounting screws
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self-draining mic mount
    • Faceplate, mic and speaker gaskets
  • Two sets of SPDT 2 Amp relay contacts for door / gate or camera control
  • Secure Remote Relay Control using Viking RC-4A
  • Blue “Call / Status” LED indicator
  • SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
  • PoE powered (class 2, <6.5 Watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • VoIP audio detection eliminates the need for “Push to Talk” mode
  • 26 Bit Wiegand input for adding a Viking proximity card reader
  • 26 Bit Wiegand output can connect to card reader input of an Access Control System
  • Programmable to speed dial up to 250 numbers
  • Cycles to roll over phone number on busy or ring-no-answer
  • Program up to 1,000 keyless entry codes
  • Program up to 1,000 proximity card numbers
  • Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
  • Call logging with time and date stamp
  • Hangs up on busy signal, time-out or touch tone command
  • Extended temperature range (-40°F to 140°F)
  • Volume adjustments for microphone and speaker
  • Selectable auto-answer feature for monitoring
  • Remotely programmable
  • Network downloadable firmware
  • Self diagnostics for testing com, mic, speaker, and switch
  • Zinc plated steel rough-in box with (2) 0.75″ conduit knockouts included
  • Flush mount using the included rough-in box or surface mount using a Viking VE-6×7 Surface Mount Box

Certifications

  • EWP
  • IP66
  • CE
  • Canada ICES
  • FCC Part 15
  • SIP

Specifications

  • Power: PoE class 2 (<6.5 Watts)
  • Overall Dimensions: 5.5″ x 6.5″ x 2.6″ (140mm x 165mm x 66mm)
  • Rough-In Box Dimensions: 4.5″ x 5.5″ x 2.5″ (114mm x 140mm x 64mm)
  • Shipping Weight: 3.2 lbs (1.5 kg)
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Humidity: Up to 100%
  • Material: 14 gauge 316 stainless steel with scratch resistant powder coating
  • SPDT Relays Contact Rating: 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
  • Audio Codecs: G711u, G711a, G722
  • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
  • Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors
