X-Series Update

Availability: Pending



We’ve made great progress with the X-Series project, and our focus is now on quality testing. As we move forward with this project, we will continue rigorous testing to make sure Viking standards are met. Our main goal is to provide customers with high-quality, American-made products they can depend on.

Want to get the latest X-Series updates?

SIGN-UP NOW

X-SERIES:  IP Intercoms with HD Video



Viking’s new X-Series line of IP Video Intercoms are designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems and service providers. The built-in IP video camera has H.264 video compression, low light sensitivity and can output dual video streams of up to 1080p resolution. The X-Series intercoms can dial programmable numbers and be programmed remotely via a built-in web UI. On-board 2 Amp relay contacts are provided for activating door strikes or gate controllers.

HD Video

The built-in IP video camera has H.264 video compression and low light sensitivity.

Dual Video Streams

The IP video camera outputs dual video streams of up to 1080p resolution for versatility.

ONVIF Compliant

X-Series products are ONVIF Profile S compliant - the industry standard.

Web UI Programming

X-Series products are easily programmed remotely via a built-in web UI.

FEATURES

  • SIP compliant
  • ONVIF Profile S compliant
  • H.264 and MJPEG video encoding
  • Up to1080p SIP video calling
  • Separate NVR stream with audio
  • Selectable video resolutions
  • Remotely programmable via web UI
  • 2 Amp relay contacts
  • PoE powered (class 2, less than 6.5 Watts)
  • Network downloadable firmware
  • Cycles through backup phone numbers on busy or no-answer
  • Durable stainless steel construction for all models
  • Wide operating temperature of -40° F to 140° F
  • Volume adjustments for speaker and microphone
  • Diagnostics for testing microphone, speaker, and relay
  • For outdoor installations, models with Enhanced Weather Protection (EWP) are available

Enhanced Weather Protection (EWP)



For outdoor installations, models with Enhanced Weather Protection (EWP) are available. EWP is perfect for applications where the unit is exposed to precipitation or condensation. EWP is designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards.

More info on EWP

The NEW LOOK of
ACCESS CONTROL

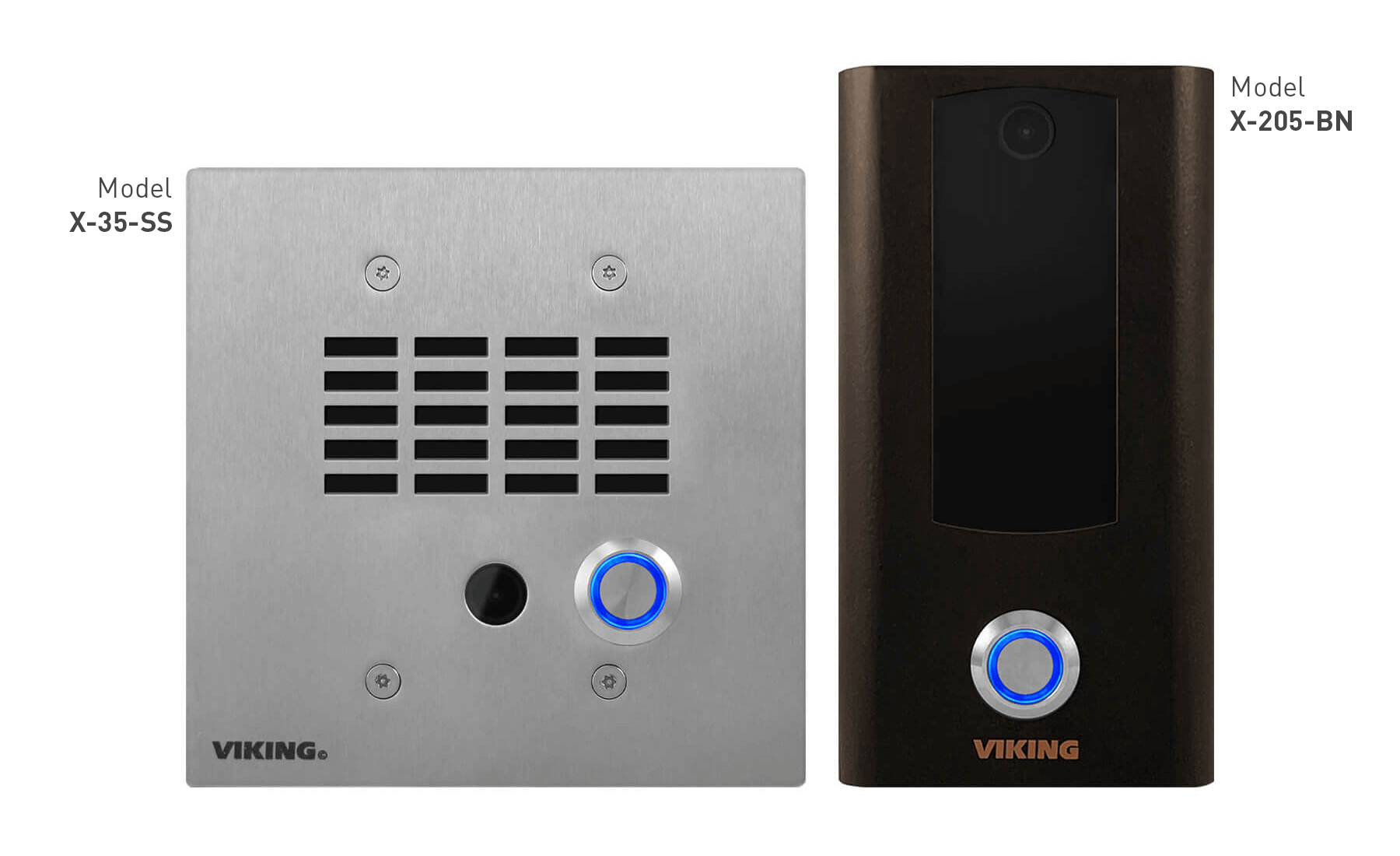

The X-Series is available in several different chassis styles, flush or surface mount configurations, and a variety of finishes to match your décor.

The heavy-duty X-35 Series is ideal for commercial and industrial installations. The X-35 intercoms feature a vandal-resistant flush mount chassis that is available in three different finishes: brushed stainless steel, oil-rubbed bronze, or textured black.

The low-profile X-205 Series is a perfect fit for residential, office, and professional applications. The X-205 intercoms feature an attractive compact surface mount chassis that is available in three different finishes: brushed stainless steel, oil-rubbed bronze, or textured black.

The X-1605 emergency phones are available in a high-visibility red surface mount chassis or a stainless steel flush mount chassis.
