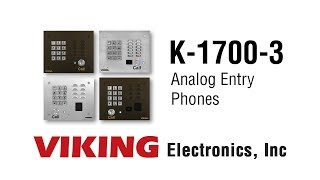

Entry Phone with Keypad and Enhanced Weather Protection, Bronze Finish

Model: K-1700-3-BN-EWP

  • Vandal Resistant Features:
    • 14 gauge louvered 316 stainless steel faceplate
    • Stainless steel “Call” button
    • Heavy duty metal keypad
    • T-10 Torx security mounting screws
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self-draining mic mount
    • Faceplate, mic and speaker gaskets
  • Blue “in use” LED
  • Telephone line powered
  • Volume adjustments for microphone and speaker
  • Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
  • Selectable auto-answer feature for monitoring
  • Selectable push button disconnect
  • Selectable VOX switching speed
  • Zinc plated steel rough-in box with (2) 0.75″ conduit knockouts included
  • Flush mount using the included rough-in box or surface mount using Viking’s VE-6×7 Series Surface Mount Boxes (DOD 424)
View all features
Add to Pick List Added to Pick List

Product Details

The K-1700-3-BN-EWP door entry phone provides a tough and attractive handsfree phone for apartment and residential door entry, or applications requiring a vandal resistant speaker phone.

When the “Call” button is pressed, the K-1700-3-BN-EWP returns dial tone, and the keypad may then be used to dial any number. If no touch tone is entered within 8 seconds, CPC is detected, a busy signal is detected, or the programmable maximum call time has elapsed, the K-1700-3-BN-EWP will automatically disconnect. Alternatively, the K-1700-3-BN-EWP may be disconnected by pressing the “Call” button again.

The K-1700-3-BN-EWP is designed to be flush mounted using the included rough-in box. Surface mount options are also available using Viking’s VE-6×7 Series Surface Mount Boxes.

The K-1700-3-BN-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more information on EWP, see DOD 859.

bronze flush mounted entry phone with keypad and weather protection

Applications

  • Apartment entry phone when used with a Viking K-1900-3, C-4000, or C-3000 Apartment Entry Controller
  • Use with a Viking C-500 (DOD 177) to control one or two (expandable to 8) K-1700-3’s with door / gate control on a single phone line
  • Use with a Viking C-2000B to control one to four K-1700-3’s with door / gate control on a single phone line (DOD 156)
  • Courtesy and customer assistance phone
  • Automated teller (ATM) phone
  • Security or emergency phone
  • Hot-Line phone when used with the K-1900-5 Hot-Line Dialer (DOD 317)
  • Kiosk phone with 100 number speed dialing when used with the K-1900-9 Multi-Number Dialer (DOD 321)

Features

  • Vandal Resistant Features:
    • 14 gauge louvered 316 stainless steel faceplate
    • Stainless steel “Call” button
    • Heavy duty metal keypad
    • T-10 Torx security mounting screws
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self-draining mic mount
    • Faceplate, mic and speaker gaskets
  • Blue “in use” LED
  • Telephone line powered
  • Volume adjustments for microphone and speaker
  • Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
  • Selectable auto-answer feature for monitoring
  • Selectable push button disconnect
  • Selectable VOX switching speed
  • Zinc plated steel rough-in box with (2) 0.75″ conduit knockouts included
  • Flush mount using the included rough-in box or surface mount using Viking’s VE-6×7 Series Surface Mount Boxes (DOD 424)

Certifications

  • EWP
  • IP66
  • FCC Part 68
  • FCC Part 15

Specifications

  • Power: Telephone line powered (20VDC / 20mA minimum)
  • Overall Dimensions: 5.5″ x 6.5″ x 2.6″ (140mm x 165mm x 66mm)
  • Rough-In Box Dimensions: 4.5″ x 5.5″ x 2.5″ (114mm x 140mm x 64mm)
  • Shipping Weight: 3.5 lbs (1.6 kg)
  • Operating Temperature: -20°F to 130°F (-29°C to 54°C)
  • Humidity: Up to 100%
  • Material: 14 gauge 316 stainless steel with scratch resistant powder coating
  • Maximum Speaker Volume: 70dB @ 1m
  • Minimum CPC Disconnect Time: 500ms
  • REN: 0.5A
  • Connections: Gel-filled butt connectors
