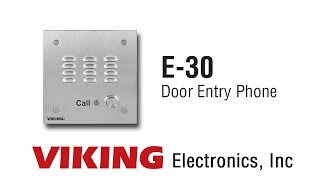

Handsfree Speaker Phone with Dialer

Model: E-30-EWP

  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • Vandal Resistant Features:
    • 14 gauge louvered 316 brushed stainless steel faceplate with permanent laser etched graphics
    • Speaker / mic screen
    • Heavy duty metal “Call” button
    • T-10 Torx security mounting screws and drive bit
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self draining mic mount
    • Faceplate, mic and speaker gaskets
  • Telephone line powered
  • Non-volatile memory, no batteries required
  • Blue off-hook LED indicator
  • Dials up to 5 emergency numbers
  • Cycles through backup phone numbers on busy or ring-no-answer
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Selectable auto-answer feature for monitoring
  • Extended temperature range (-15°F to 130°F)
  • Flush mounts using the included rough-in box or surface mount using a Viking VE-5×5 Surface Mount Box (DOD 424)
View all features
Add to Pick List Added to Pick List
Software & Downloads

Product Manual

Product Details

The E-30-EWP handsfree entry speaker phone is designed to provide quick and reliable handsfree communication and can be connected directly to a CO line or analog PABX / KSU station.

The E-30-EWP features non-volatile memory, a built in auto dialer, and intelligent call progress detection for automatic hang-up when a call is completed. It can be programmed to dial up to 5 different numbers on ring-no-answer or busy, and can be configured to cycle through these numbers until answered.

The E-30-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD 859.

Hands free entry phone with auto dialer

Applications

  • ATM machines
  • Convention centers
  • Non-ADA Hot-Line Phone for:
    • Elevators
    • Parking lots
    • Stadiums
    • Parking ramps
    • Residences
    • Businesses
  • Gate and Door Entry Phone for:
    • Building lobbies
    • Pedestrian gates
  • Silent holdup alarm dialer when used with a Viking PB-1 Panic Button Kit (DOD 233)

Features

  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • Vandal Resistant Features:
    • 14 gauge louvered 316 brushed stainless steel faceplate with permanent laser etched graphics
    • Speaker / mic screen
    • Heavy duty metal “Call” button
    • T-10 Torx security mounting screws and drive bit
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating (see DOD 859)
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self draining mic mount
    • Faceplate, mic and speaker gaskets
  • Telephone line powered
  • Non-volatile memory, no batteries required
  • Blue off-hook LED indicator
  • Dials up to 5 emergency numbers
  • Cycles through backup phone numbers on busy or ring-no-answer
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Selectable auto-answer feature for monitoring
  • Extended temperature range (-15°F to 130°F)
  • Flush mounts using the included rough-in box or surface mount using a Viking VE-5×5 Surface Mount Box (DOD 424)

Certifications

  • EWP
  • IP66
  • FCC Part 68
  • FCC Part 15

Specifications

  • Power: Telephone line powered (24VDC / 20mA minimum)
  • Overall Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57mm)
  • Plastic Electrical Box: 4″ x 4″ x 2.12″ (102mm x 102mm x 54mm)
  • Shipping Weight: 2.2 lbs (1 kg)
  • Operating Temperature: -15°F to 130°F (-26°C to 54°C)
  • Humidity: Up to 100% condensing
  • Material: 14 gauge 316 stainless steel with #4 brushed finish
  • Minimum Ring Voltage: 25VRMS
  • REN 0.5A
  • Connections: (2) gel-filled butt connectors
